$1,599 RRP
*Price does not include shipping or dealer setup fees

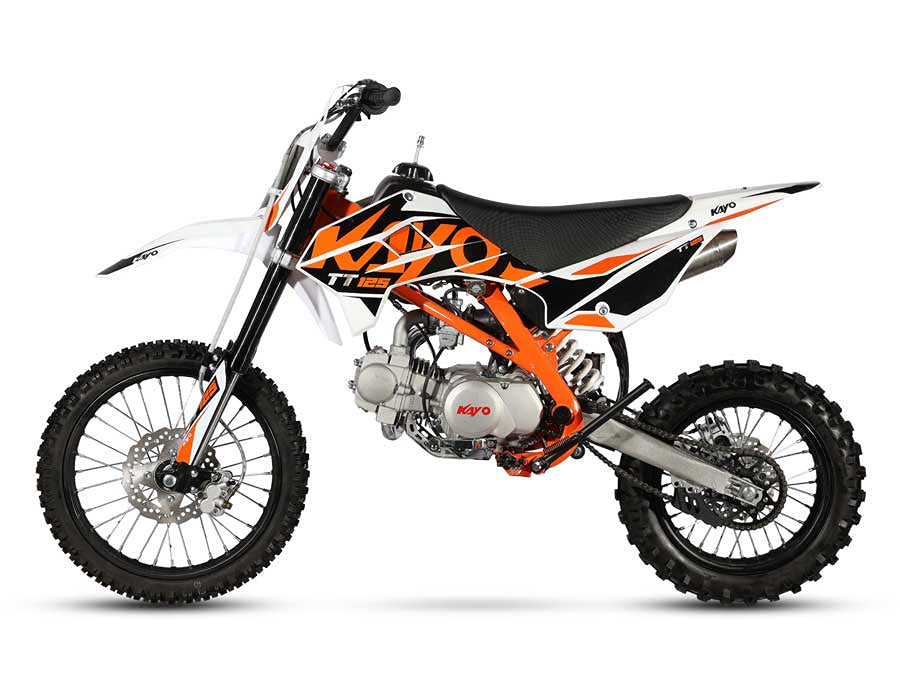

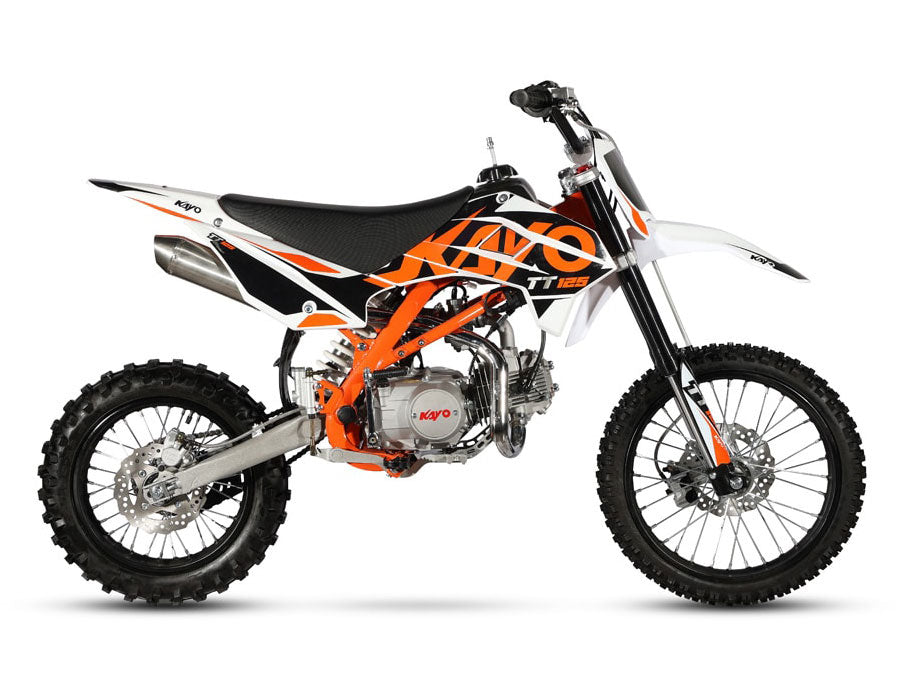

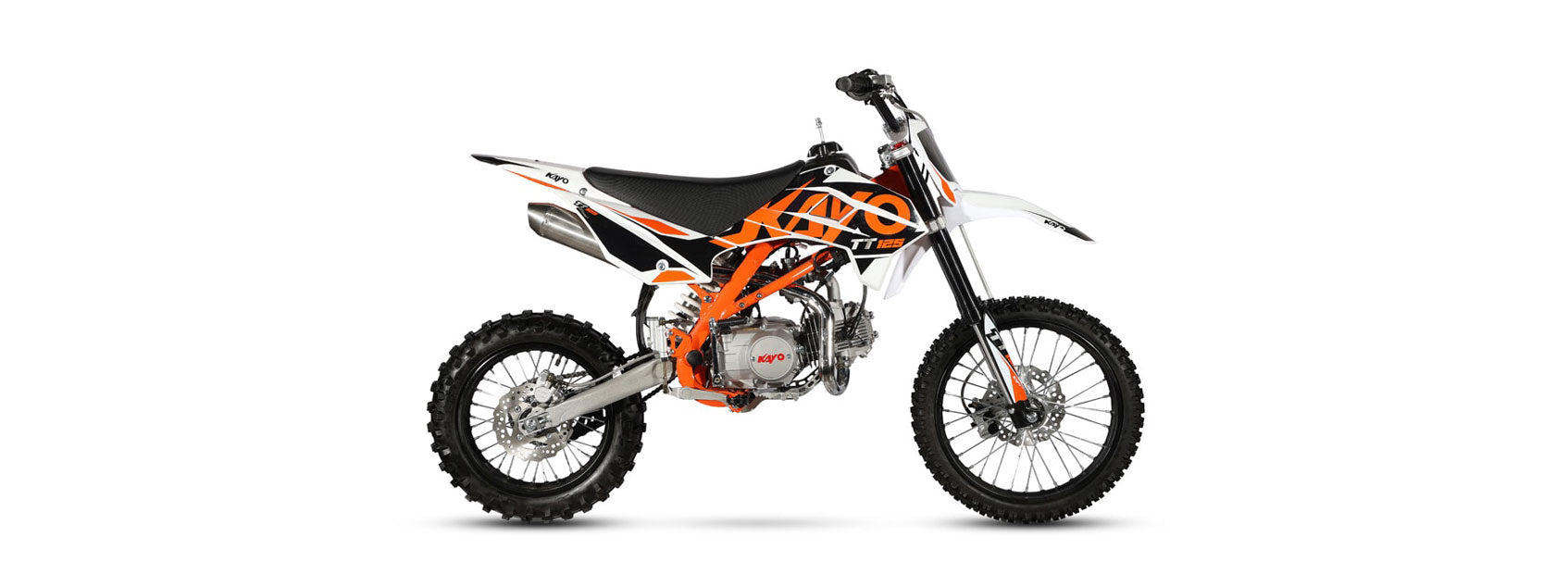

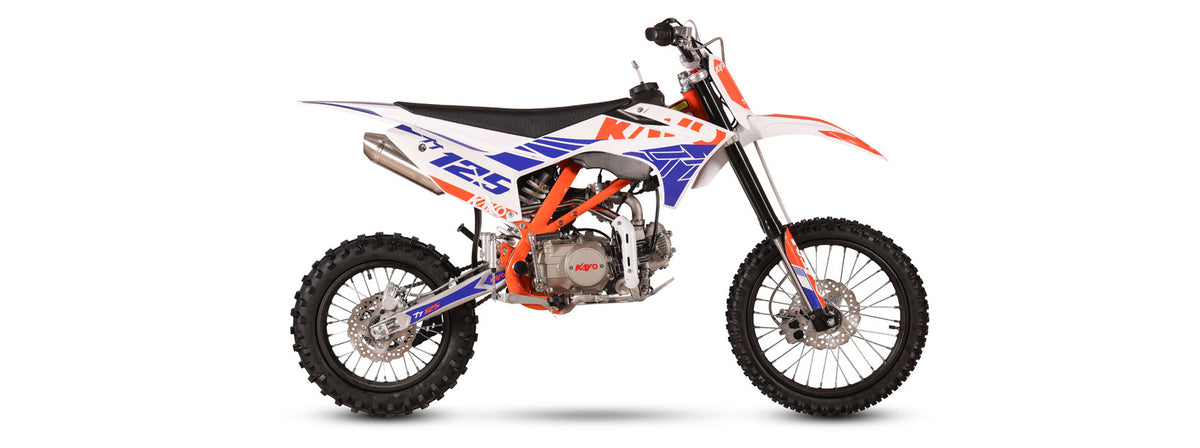

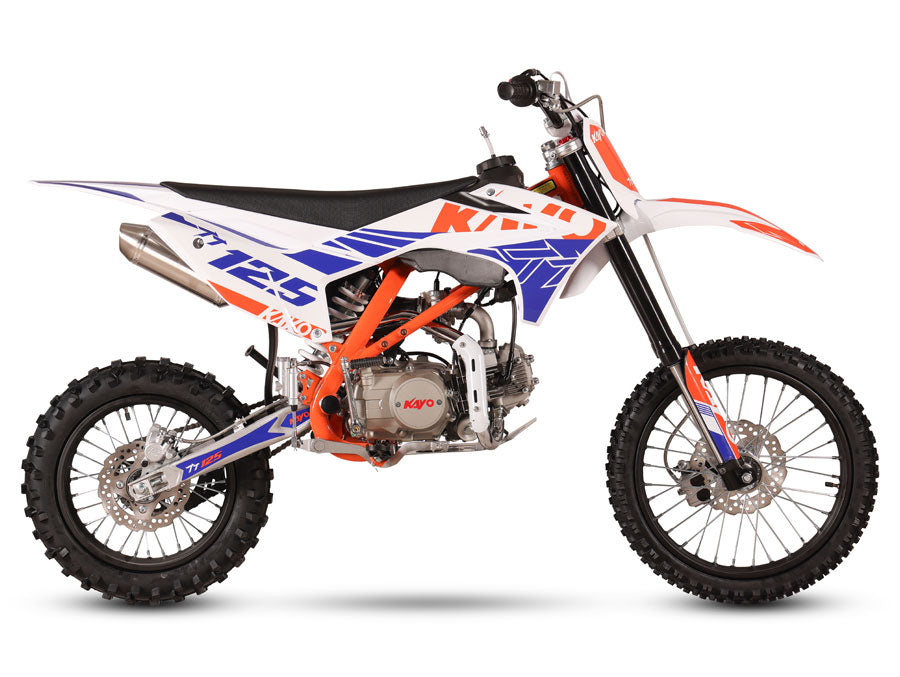

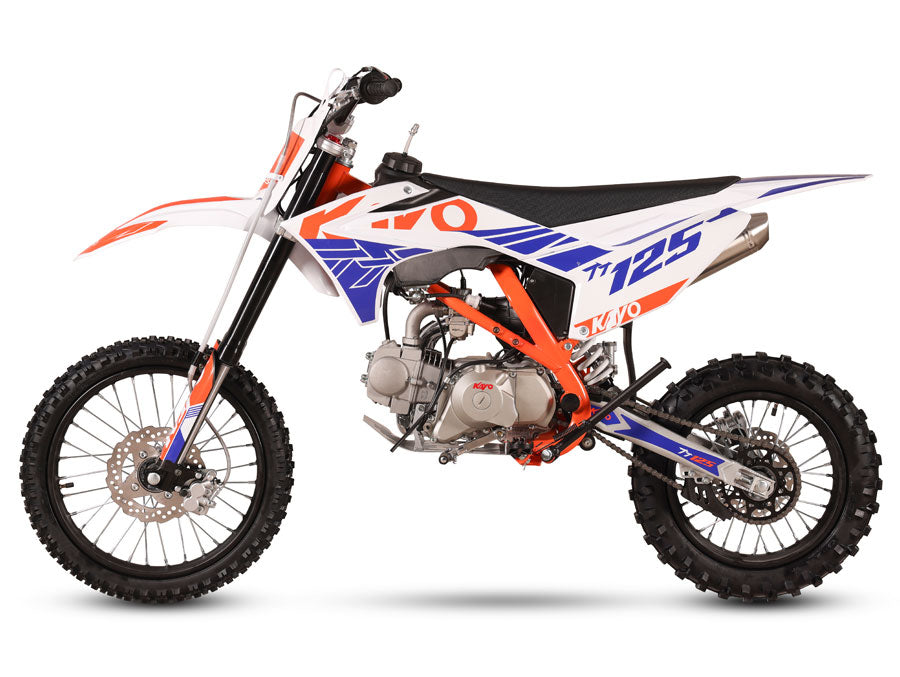

Big Foot The bigger brother of our TSD 110, with 17”/14” larger wheels and seamless heavy duty twin tube cradle frame. This upgraded Kayo bike offers comfort and durability on all terrain tracks.
DISPLACEMENT
119.6cc
SEAT HEIGHT
855mm
WHEEL BASE
1220mm
Specifications

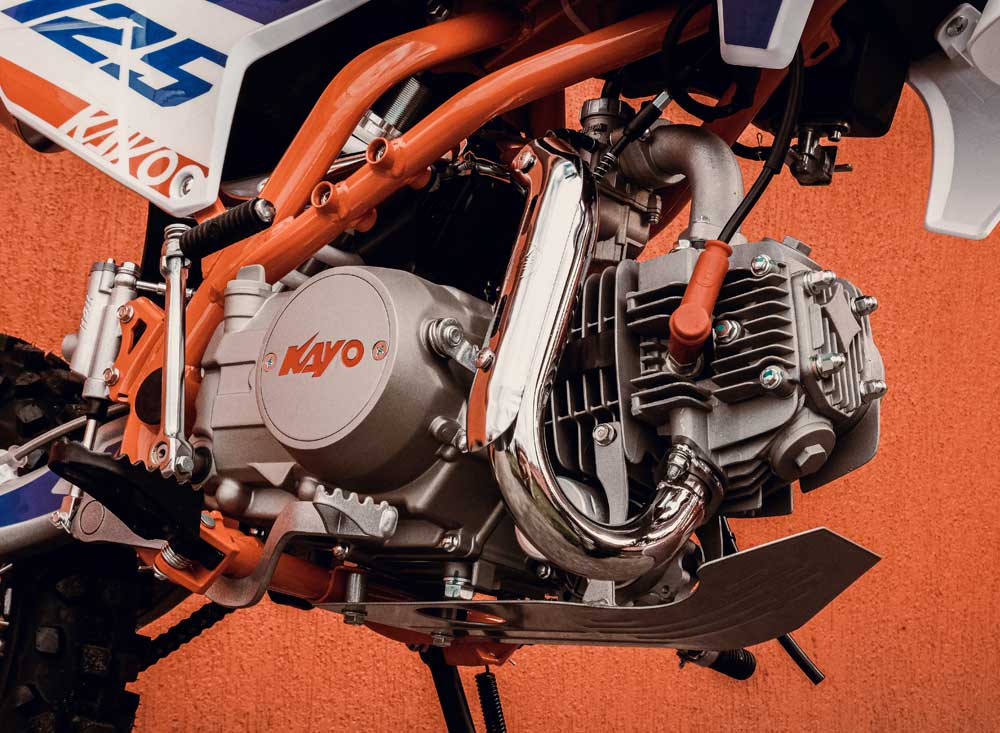

| Engine | |
|---|---|

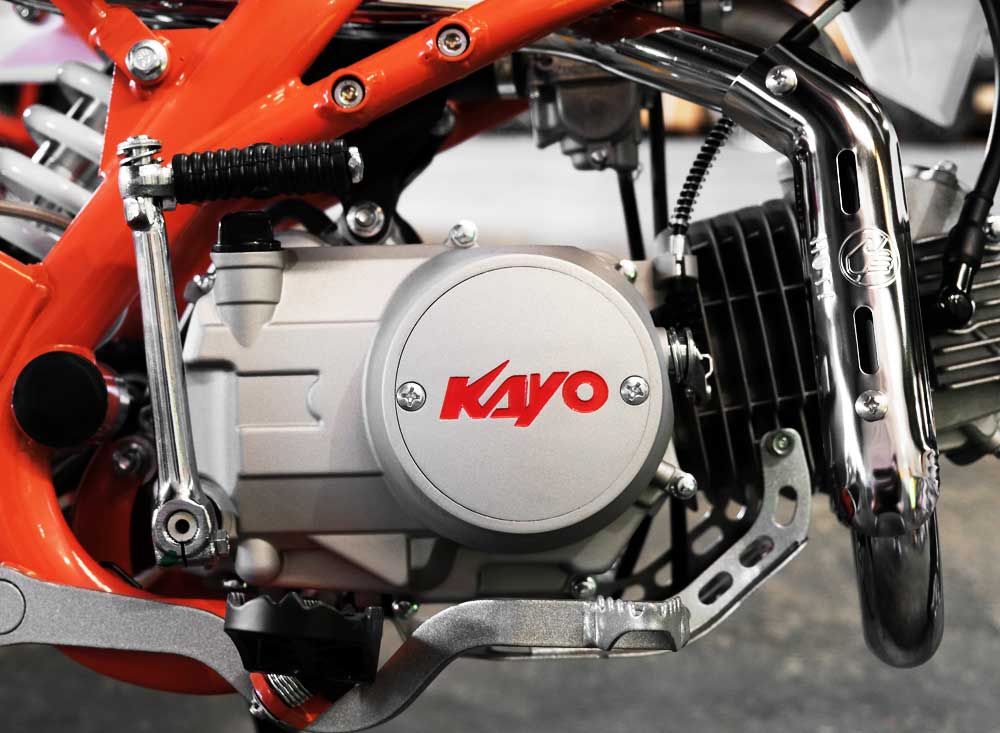

| Engine Type: | Single-cylinder, 4-valve, Air cooling, Manual, 4 gears |
| Displacement: | 119.6cc |
| Bore*Stroke: | 52.4mm*55.5mm |
| Compression Ratio: | 9.3 : 1 |
| Max. Power: | 5.6/8000 kw/rpm |
| Max. Torque: | 8.5/5000 N.m/r/min |
| Fuel System: | Standard Carburetor |
| Starting: | Kick |

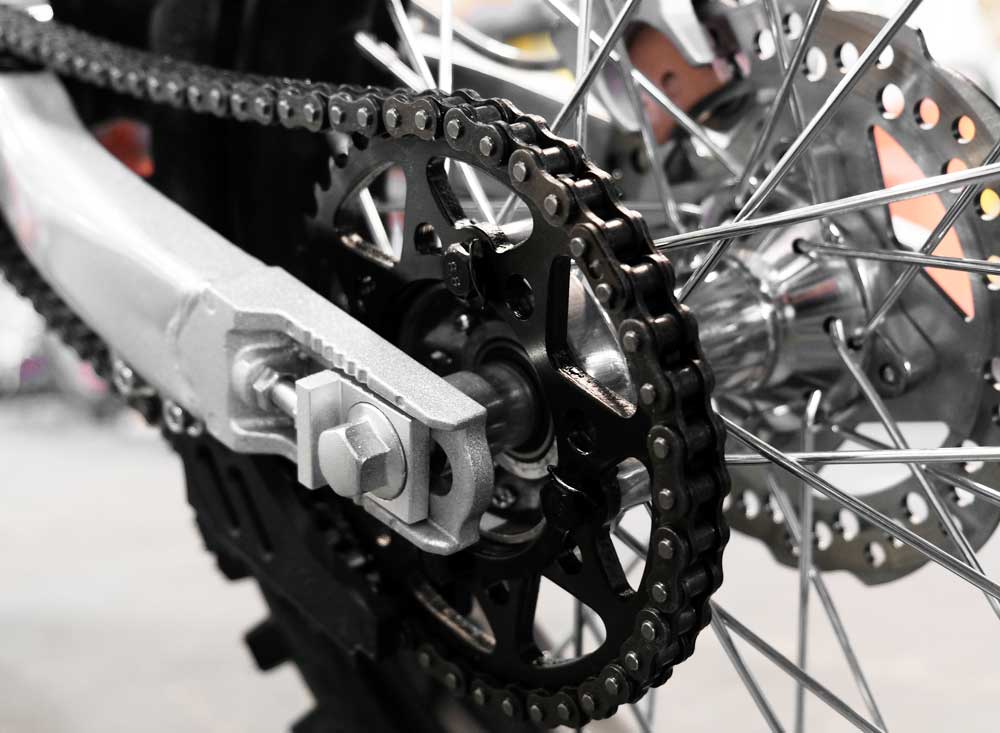

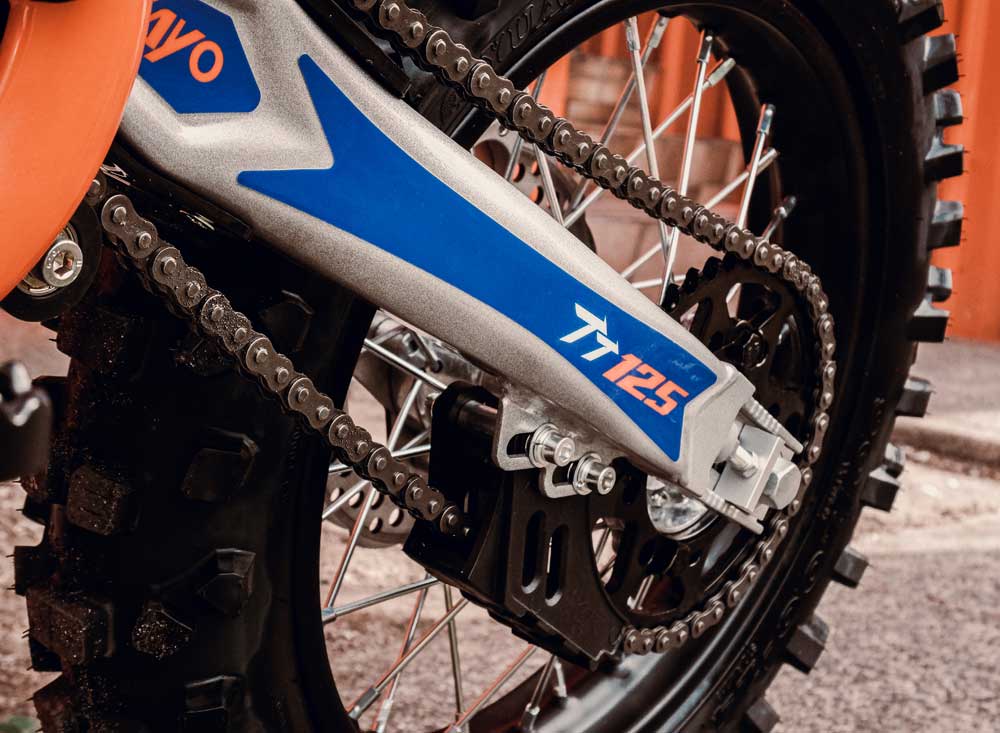

| Transmission: | Chain (15T-41T 428H#) |
| Ignition: | CDI |
| Chassis | |
| Frame: | Professional design and processed by KAYO |
| Front Fork: | 735mm Non-adjustable |
| Rear shock: | 360mm Non-adjustable |

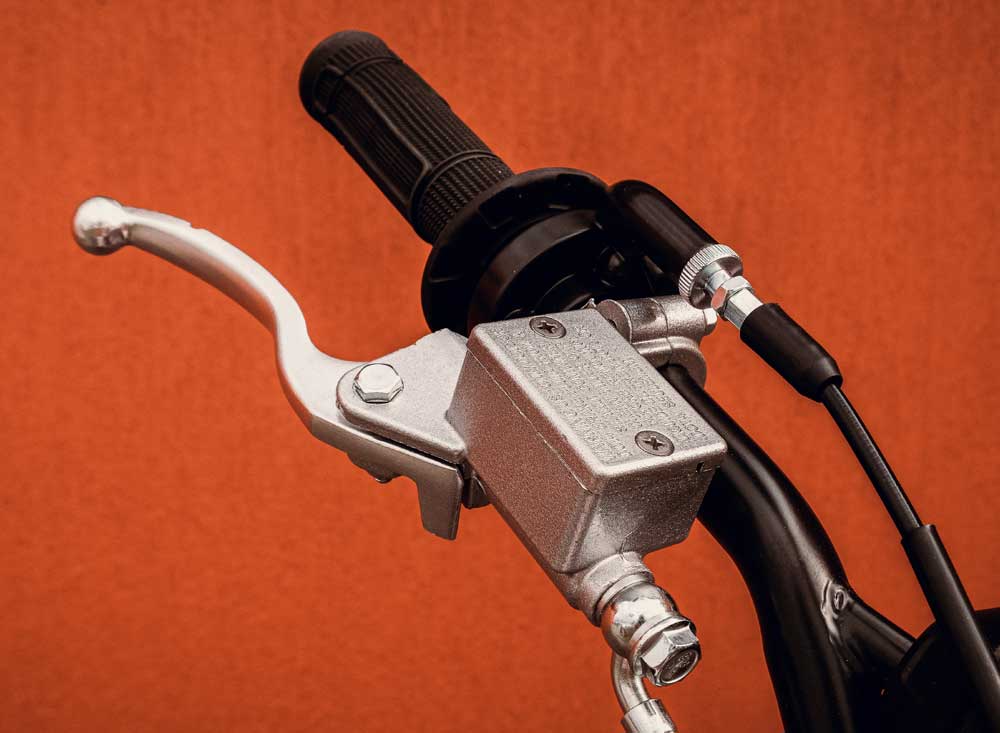

| Front Braking: | Disc Brake |

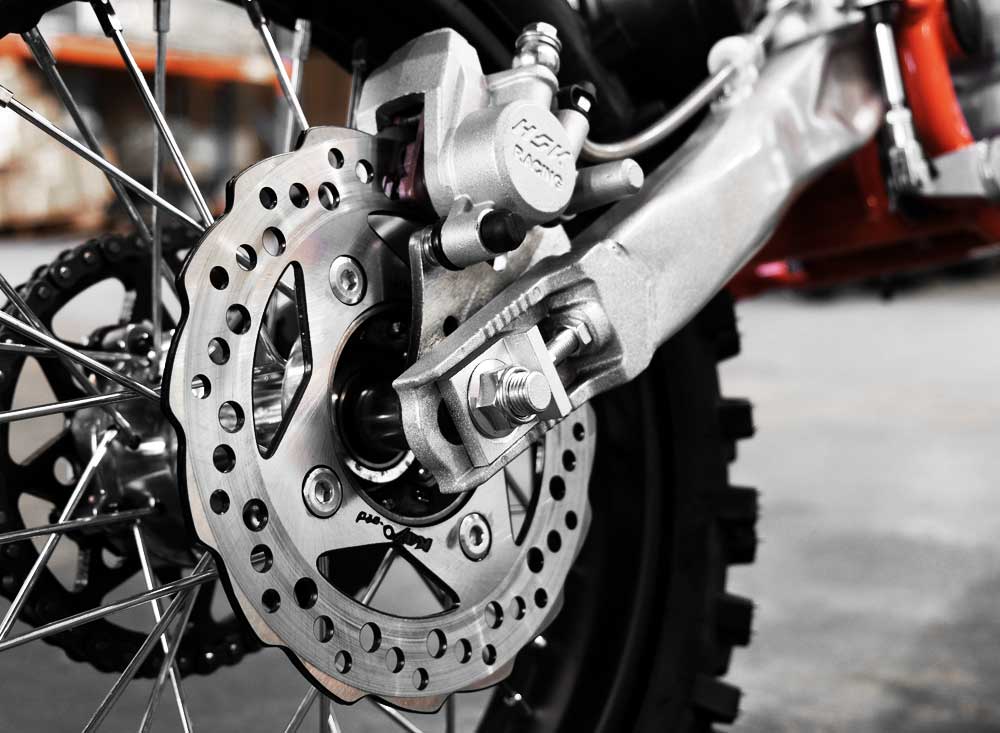

| Rear Braking: | Disc Brake |
| Front Wheel Rim: | Steel 1.6*17 |
| Rear Wheel Rim: | Steel 1.85*14 |
| Front Tyre: | 17″ 70/100-17 |
| Rear Tyre: | 14″ 90/100-14 |
| Dimensions and Capacities | |
| Vehicle Size: | 1780*750*1120mm |
| Wheelbase: | 1220mm |
| Seat Height: | 855mm |
| Ground Clearance: | 290mm |
| Dry Weight: | 72kg |
| Fuel Capacity: | 5.5 L |
| Packing Size: | 1560*380*735 mm |
