$1,999 RRP
*Price does not include shipping or dealer setup fees
DISPLACEMENT
124cc
SEAT HEIGHT
665mm
WHEEL BASE
910mm
Specifications

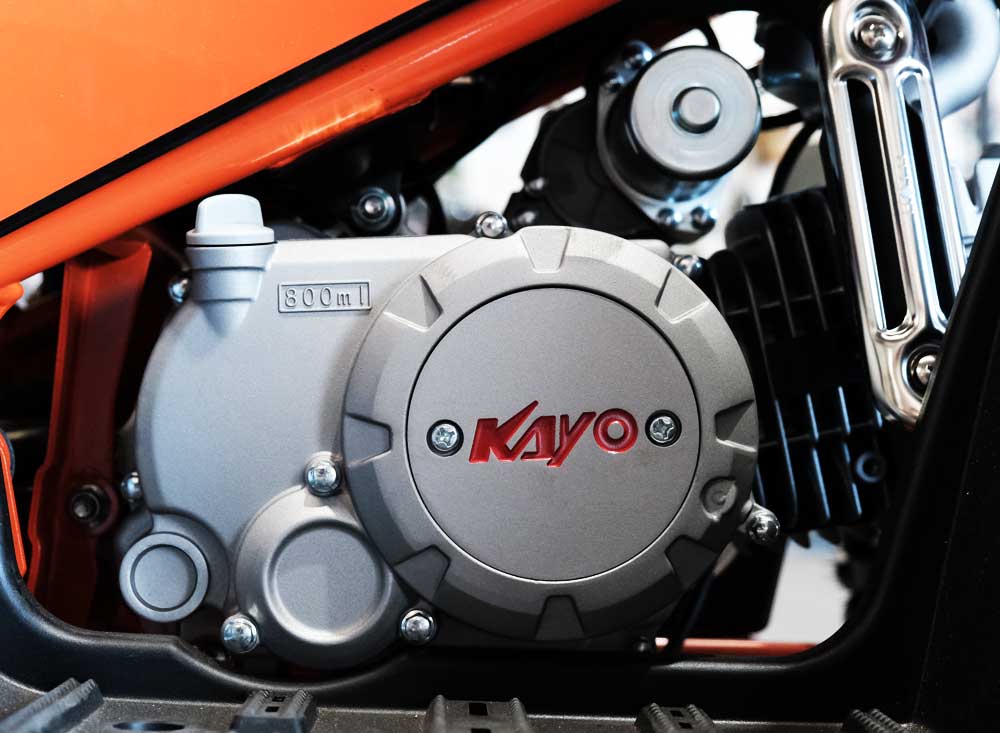

| Engine | |
|---|---|
| Engine Type: | Single-cylinder, 4-stroke, Air cooling, Semi-Auto, 2 gears |
| Displacement: | 124cc |
| Bore*Stroke: | 52.4mm*55.5mm |
| Compression Ratio: | 9.0 : 1 |
| Max. Power(kw/rpm): | 6 : 8000 kw/rpm |
| Max. Torque(N.m/r/min): | 8 : 5000 N.m/r/min |
| Fuel System: | Standard Carburetor |
| Starting: | Electric |
| Transmission: | Chain (13T-37T 428#) |
| Ignition: | CDI |
| Chassis / Brake / Wheel | |
| Frame: | Steel Frame – Professional design and processed by KAYO |
| Front shock: | 265mm Non-adjustable |

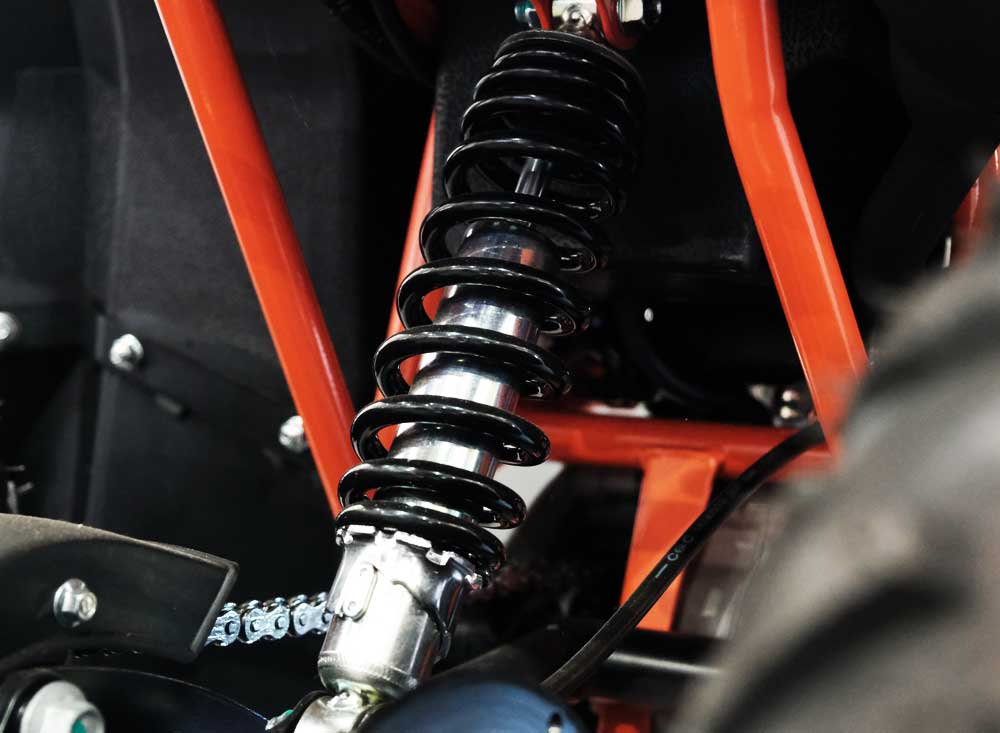

| Rear shock: | 265mm Adjustable |

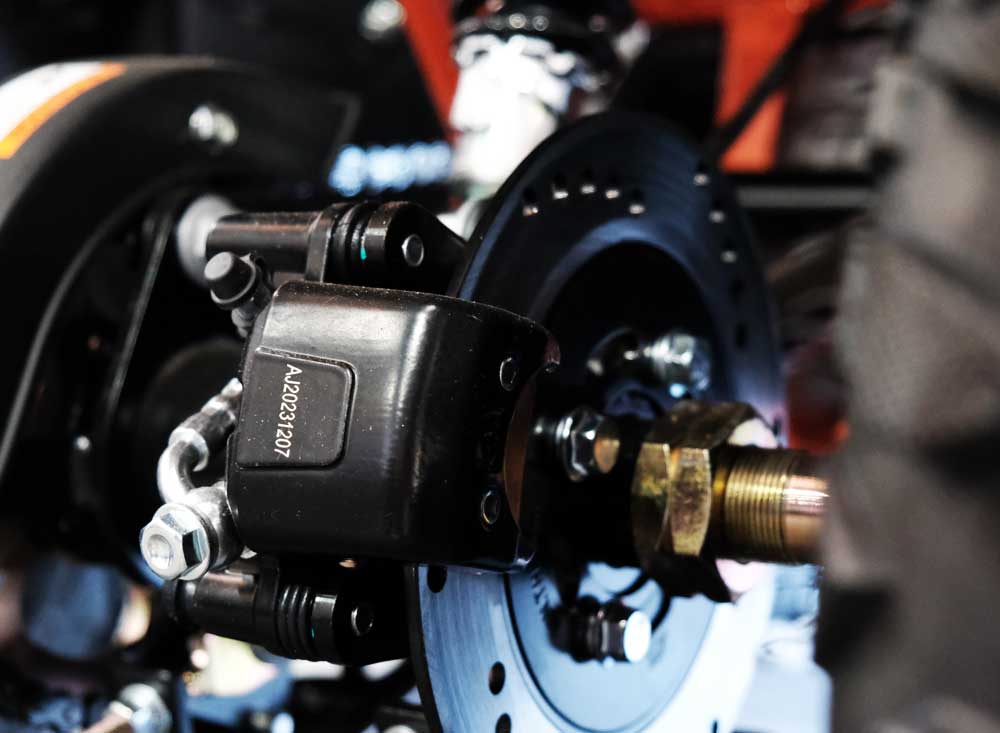

| Front Braking: | Disc Brake |
| Rear Braking: | Disc Brake |
| Front Wheel Rim: | Steel 8*5.5AT-4/88 67 |
| Rear Wheel Rim: | Steel 8*7.0AT-4/110 90 |
| Front Tyre: | 8″ AT19*7.0-8 |
| Rear Tyre: | 8″ AT18*9.5-8 |
| Dimensions and Capacities | |
| Vehicle Size: | 1430 x 860 x 890 mm |
| Wheel base: | 910mm |
| Seat Height: | 665mm |
| Ground Clearance: | 115mm |
| Dry Weight: | 98kg |
| Fuel Capacity: | 4.5L |
| Packing Size: | 1430 x 815 x 600 mm |
